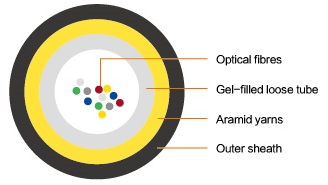

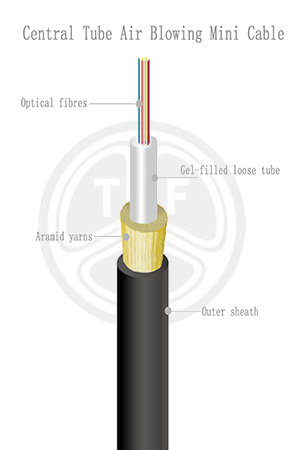

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound
and covered with a layer of aramid yarn as strength member. The cable is completed with an outer sheath.
Characteristics：
1.Using centre tube design less than 24f to get more compact structure
2.Small outer diameter, light weight , low friction sheath material
3.Accurate excess fibre length control to get stable cable performance
4.Stable temperature cycling performance by special process control
5.High speed, long distance air-blowing , efficient installation
6.Optional LSZH outer sheathing, applicable for access to indoor
7.Optional 200μm mini optical fibre to get smaller outer diameter
Installation：Duct, air blowing
Applications：FTTX, LAN communication
Standards：IEC60794-5; YD/T 1460.4; GB/T 7424.5
Temperature Range：Transportation：-40℃~+70℃；Installation：-10℃~+50℃；In use：-30℃~+70℃
